Non-Metal aerial self supporting 12 Cores ADSS Optical Fiber Cable
Product Description
This Single Mode Cable 2/4/6/8/12/24/48/96 Core ADSS Fiber Optic
Cable are suitable for outdoor aerieal installation.Light armored
structure with Amaid Yarn messager makes Single Mode Cable
2/4/6/8/12/24/48/96 Core ADSS Fiber Optic Cable itself gravity.
This specification covers the requirements of the All Dielectric
Self-Supporting Optical Fiber Cable (ADSS) to be supplied to
customer for use outside installation.
The optical fiber cable shall comply with the requirements of this
specification and generally meet or better latest standards:
ITU-T G.650: Definitions and test methods for linear, deterministic
attributes of single-mode fiber and cable
ITU-T G.652.D: Characteristics of a single-mode optical fiber and
cable
IEC 60793-2-50 B1.3: Sectional specification for class B single
mode fibers
IEEE Std 1222 TM, IEEE Standard for All-Dielectric Self-Supporting Fiber Optic
Cable.
Specifications
General Specifications
| Cable Type | ADSS |
| Fiber Type | G652D |
| Application | Long distance telecom, LAN in high voltage area or access to
telecom network; |
| Recommended installation methods | Power transmission system, much thunder areas and high
electro-magnetic inerference |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
Fiber Specifications
| Technical parameter of ITU-T G.652D (B1.3) single-mode optical
fiber |
| Optical Characteristics | | | |
| Mode field diameter (MFD) | 1310nm 1550nm | 9.2±0.4 10.4±0.8 | µm µm |
| Cut-off wavelength (λcc) | | ≤1260 | nm |
| Attenuation coefficient | 1310nm 1383nm 1550nm | ＜0.35 ＜0.35 ＜0.22 | dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | | ≤0.05 | dB |
| Dispersion coefficient | 1288~1339nm 1271~1360nm 1550nm | ≤3.5 ≤5.3 ≤18 | Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | | 1300~1324 | nm |
| Max zero dispersion slope | | ≤0.093 | Ps/(nm2.km) |
| Group index of refraction (typical value) | 1310nm 1550nm | 1.466 1.467 | |
| Geometric characteristic | | | |
| Cladding diameter | | 125.0±1.0 | µm |
| Core/cladding concentricity error | | ≤0.8 | µm |
| Cladding non-circularity | | ≤1.0 | % |
| Coating diameter | | 245.0±10 | µm |
| Cladding/coating concentricity error | | ≤12.0 | µm |
| Coating non-circularity | | ≤8 | % |
| Diameter of colored coating | | 250.0±15 | µm |
| Mechanical characteristic | | | |
| Curling (radius) | | ≥4 | m |
| Proof stress | | ＞0.69 | Gpa |
| Coating strip force | Average value Peak value | 1.0-5.0 1.3-8.9 | N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | | ≥20 | |
Standard Color Identification of Fiber
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua
|

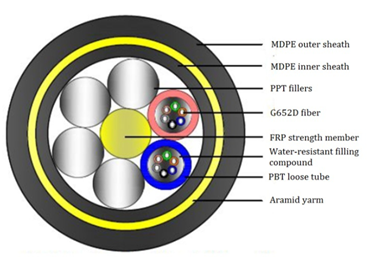

Cable Design
| Items | Descriptions |
| Optical fiber(G.652.D) | 12F | 24F |
| Loose tube | Material | PBT (Polybutylene Terephthalate) |
| Fibers per tube | 4 | 4 |
| Numbers | 3 | 6 |
| Filler rod | Numbers | 3 | 0 |
| Central strength member | Material | FRP (Fiber glass reinforced plastic) |
| Water blocking Material | Water blocking yarn |
| Additional strength member | Aramid yarns |
| Outer sheath | Material | Black HDPE |
| Thickness | Nominal: 1.6 mm |
| Cable nominal diameter(±0.3mm) | 10.0 |
| Cable approx. weight (kg/km) | 78 |
| Rated Tension Stress (RTS) | 4.5KN |
| Maximum working tension (40%RTS) | 1.8KN |
| Everyday stress (15-25%RTS) | 0.675-1.125KN |
| Allowable maximum span | 100m |
| Crush | Short time | 2200N/100mm |
| Applicable temperature range | Operation | -40℃~+70℃ |
| Installation | -10℃~+50℃ |
| Storage & shipping | -40℃~+60℃ |
| Bending Radius | Installation | 20 times of cable diameter |
| Operation | 10 times of cable diameter |
Cable Sheath Marking
Each cable have the following information clearly marked on the
outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer’s requirements.
Cable Performance
| Item | Testing | Test Method | Test Result |
| 1 | Tensile strength IEC 60794-1-E1 | Tension load:1500N Time: 1min Cable length: ≥50m | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 2 | Impact IEC 60794-1-E4 | Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 3 | Repeated Bending IEC 60794-1-E6 | Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 4 | Torsion IEC 60794-1-E7 | Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 5 | Water Penetration IEC 60794-1-F5B | Water height: 1m Cable length: 3m Keeping time: 24hours | No water leaked from the opposite end of cable |
| 6 | Temperature IEC 60794-1-F1 | Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 7 | Compound flow IEC 60794-1-E14 | Sample length: 30cm
Temperature: 70℃±2℃ Keeping time: 24hours | No compound flow |
Features
Design details for span lengths up to 1500ft (457m) and fiber
counts up to 432
Single pass installation -- no messenger, no lashing wire -- faster
and lower cost
Cable is water-blocked using dry core technology, therefore no
messy flooding compounds
Suitable for use on distribution and high voltage transmission
lines
Requires no messenger wire -- fully self-supporting.
