Brand Name : | TW-SCIE |
Model Number : | GJYXCH/GJYXCFH |
Certification : | CE, ROHS, REACH, SGS, ISO |
Price : | USD0.04/m |
Payment Terms : | L/C, T/T |
Delivery Time : | 15 working days |

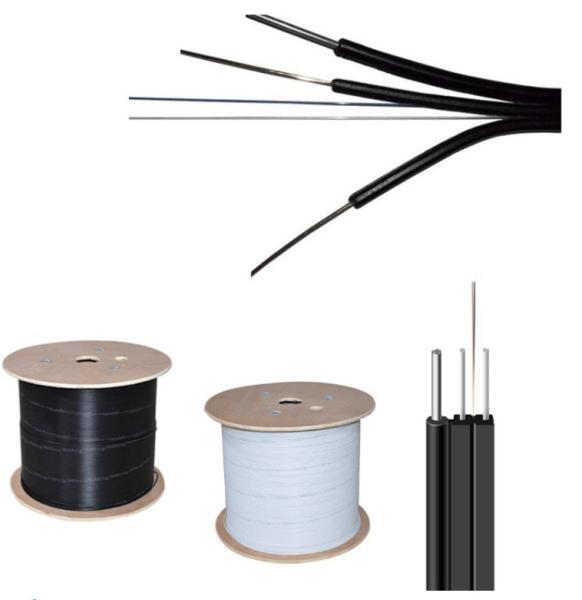

Single Mode Outdoor Self Supporting 10 Core Ftth Drop Cable
Specifications
Optical Characteristics
Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G652D | 0.36/0.22 | 16 | ||||
G657A1 | 0.36/0.22 | 10 | ||||
G657A2 | 0.36/0.22 | 7.5 | ||||
50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
Structure and technical specification
Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
(N/100mm) | Crush Resistance (N/100mm) | ||
Short Term | Long Term | Short Term | Long Term | |||
1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 |
6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
