    12 Swg Acsr Wire Overhead Line Conductor Acsr Far East Cable

    Ask Lasest Price
    Brand Name : TW-SCIE or OEM
    Model Number : OPGW
    Certification : ROHS REACH ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 km per Day
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

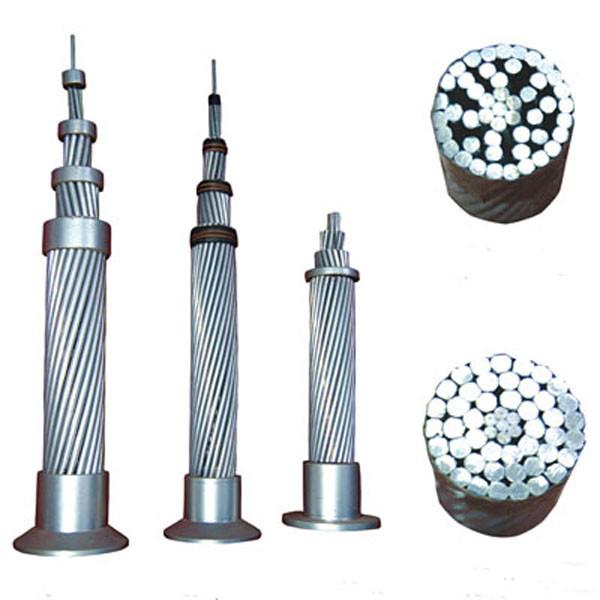

    12 Swg Acsr Wire Overhead Line Conductor Acsr Far East Cable

    12 Swg Acsr Wire Overhead Line Conductor Acsr Far East Cable

    Application Features

    ABC systems are used in city power grid transmission lines, with an operating voltage of up to 600/1000 volts. They are mainly used for overhead single-phase and three-phase electricity distribution, as well as other purposes. They have a stable working temperature range of -10°C to 80°C and are economical, with good electrical properties and a lower cost than copper cables. They are also flexible and easy to install, making them suitable for distribution and other applications. They provide safety by preventing electric short circuits and potential fire risks, while being durable against UV radiation, moisture, and corrosion. Additionally, they have an aesthetically pleasing finish and are adaptable to the physical properties and electrical needs of the African environment and market.


    Specifications


    Conductor Technical Structure
    Unit
    Value



    Structure
    Center: steel wire



    Nos./mm
    1/2.0
    Layer 1:steel wire
    6/2.0
    Layer 2: Aluminum wire
    10/2.57
    Layer 3: Aluminum wire
    16/2.57
    Standard
    /
    GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498
    Stranding direction of outer layer
    Direction
    Right-hand
    Conductor diameter
    mm
    16.28±1%
    Cross section
    mm2
    156.8±1%
    Conductor weight
    kg/km
    547.8±1%
    Rated tensile strength
    kN
    52
    Modulus of Elasticity
    GPa
    73.9
    Coefficient of linear expansion
    10-6/℃
    18.9
    Max. DC Resistance at 20℃
    Ohm/ft
    0.637

    Lay ratio
    Aluminum layer

    times
    16-wire layer 10-14
    10-wire layer 10-16
    Steel layer
    6-wire layer 18-30
    Properties of Aluminum Wire (Before Stranding)
    Unit
    Value
    Diameter and tolerance
    mm
    2.57±0.03
    Min. tensile strength
    MPa
    175
    Min. elongation at 250mm
    %
    1.7
    Max. resistivity at 20℃
    Ω·mm2/m
    0.028172
    Properties of Steel wire (Before stranding)
    Unit
    Value
    Diameter and tolerance
    mm
    2.0±0.02
    Min. tensile strength
    MPa
    1410
    Min. tension at 1% elongation
    MPa
    1280
    Min elongation at 250 mm
    %
    3.5
    Class of zinc coating
    /
    Class A

    Zinc coating quality
    g /mm²
    230
    Conductor diameter
    MM
    6.0
    Rated tensile strength
    KN
    /

    Packing & Shipping & Payment

    12 Swg Acsr Wire Overhead Line Conductor Acsr Far East Cable

    12 Swg Acsr Wire Overhead Line Conductor Acsr Far East Cable


    Our Company Profile

    Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

    The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

    The main products of our enterprise are:Optical Fiber, Optical Fiber, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

    All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.


    FAQ


    Q1: Where is your factory ?
    A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.

    Q2: How long has your company been doing this?
    A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .

    Q3:How about the cable's quality?
    A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.

    Q4: Can you produce cable as our requirements?
    A6: Of course .We can supply different types of products according to your requirements with reasonable prices .

    Q5:Do you accept the OEM order and how many is the MOQ?
    A7:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
