Features

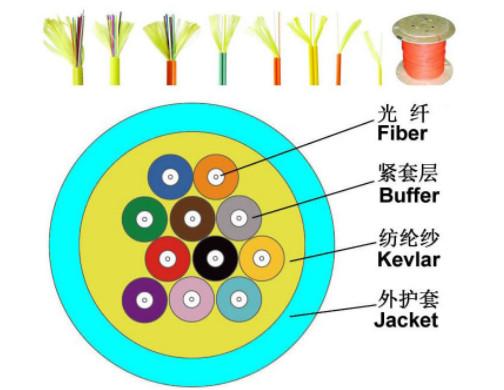

1. Tight buffer fiber ease of stripping.
2. The jacket anti-corrosion, anti-water, anti-alltraviolet
ratardation, flame retardant and harmless to environment etc;
3. Excellent flame retardart jacket and anti-torsion;
4. Soft, flexible, easy to splice, and with big capacity data
transmission;
5. Excellent performance of anti-torsion;
6. All dielectric structure protect it from electromagnetic
influence;
Application
1. Multi optical fiber jumper, patch cord, pigtail cable;
2. Indoor any purpose cable distribution
3. Backbone building distribution cabling.
4. Installation: wall, interlayer, pipe, trough, duct.
Order Optional Information
Jacket material: PVC (Environmental lame-retardant
polyvinylchloride), LSZH (Environmental low smoke zero halogen
flame retardant polyolefin), or other customerized material.
Jacket color: blue, orange, green, brown, gray, red, black, yellow,
and violet, pink, aqua.
Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125μm,
A1b-62.5/125μm, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1-
EasyBad G.657, E1.1- EasyBad Plus G.657, etc.
Cable Dimension: the nominal cable dimension, or other
constomerized dimension;
Fiber Count: total number of fibers in the cable
MOQ: 1km~2km, other customerized
Specificiation
| Fiber count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile (N) Long/ Short term | Crush (N/100mm) Long/ Short term | Min. Bend Radius (mm) Dynamic/ Static |
| 4 | 5.0 | 19.0 | 130/440 | 200/1000 | 20D/10D
|
| 6 | 5.2 | 23.0 | 130/440 | 200/1000 |
| 8 | 5.5 | 26.0 | 130/440 | 200/1000 |
| 12 | 6.5 | 36.5 | 200/660 | 200/1000 |
| 16 | 7.5 | 44.5 | 200/660 | 200/1000 |
| 24 | 8.2 | 54.5 | 200/660 | 200/1000 |
Note: 1. The min. bend radius (static) is 5D when G657 fiber is
used. 2. Range of temperature: -40~+70°C 3. D is outer diameter of the round cable 4. Tight-buffered fiber is 0.9mm |
Packing & Shipping
Company Profile
Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications
undertakings with our own impoters and exporters rights. Since its
founding, high quality products an strong co-operations have
enabled the enterprise to stably and rapidly grow into a
specialized communication Manufacturer supplier and engineering
service provider the most complete product line-up and
specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent,
conscientious talents. While bending ourselves to following with
the worldwide advanced development and application, we build up
cooperation ties with many scientific research academy.
The main products of our enterprise are:
optic cable, optical cable, Optical media converter, optical
transceiver, optical coupler, optical modem, optical connector,
optical distribution frame.
All of the products are widely used in telecom, electric power,
railway and other related department, exporting France, India,
Singapore, Malaysia.
