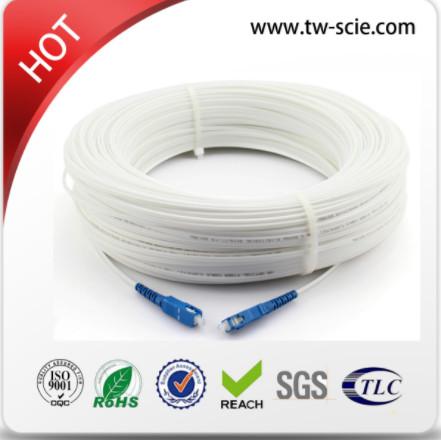

    2 core fiber optic drop cable Indoor Cable Easy to Install

    2 core fiber optic drop cable Indoor Cable Easy to Install
    Product Description

    Two core flat drop cable for fiber To The Home (FTTH) application, the cable is constructed with two single mode fibers protected by dielectric strength member made of fiber reinforced plastic (FRP) strength member and LSZH outer jacket.

    It is very light in construction and easy to install, generally used for connecting Main distribution frame to consolidation point in home, apartment or offices. Industry standard connectors can be used for direct termination because of standard 250µm fiber size.

    Complied With Or Exceeds Standard


    . ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
    . ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
    . IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
    . ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
    . ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)

    Mechanical & Environmental Characteristics


    DESCRIPTIONCABLE SPECIFICATION
    G652DG657A
    Cladding non-circularity<1.0%≤0.7%
    Mode eld diameter @ 1310nm8.7~9.5µm8.4~9.2µm
    Cladding diameter125.0+1.0µm125.0+0.7µm
    Core concentricity error<0.6µm<0.5µm
    Primary coating diameter245±7µm245±5µm
    Coating-cladding concentricity error≤12.0up
    fiber bend radius>4m
    Proof level>1.5% strain
    Fiber typeG652D OR G657A
    Tensile load80N
    Temperature-20~60°C

    Transmission Characteristics
    CHARACTERISTICECONDITIONVALUE
    Attenuation@1310nm<0.40db/km
    @1550nnm<0.30db/km
    Macro bending lossØ 30 mmG652DG657A
    10 turns at 1550nm<0.50db<0.25db
    Chromatic dispersion@1310nm<3.5ps/nm.km
    @1550nnm<18ps/nm.km
    Cut-off wavelength<1260nm
    Zero dispersion Slope≤0.092ps/(nm².km)
    Zero dispersion wavelength1312~1324nm


    STANDARD Fiber COLOR CODE


    Fiber Number Fiber Color Fiber Number Fiber Color
    Fiber 1 Blue Fiber 7 Red
    Fiber 2 Orange Fiber 8 Black
    Fiber 3 Green Fiber 9 Yellow
    Fiber 4 Brown Fiber 10 Violet
    Fiber 5 Slate Fiber 11 Rose
    Fiber 6 White Fiber 12 Aqua

    Fiber 13 and higher The color code is repeated with added black stripe or dash
    Note: Fiber Tube color will be followed with same order.

    Ordering Guide


    XXABCCL
    Cable TypeJacketFiber CountFiber Type(FXX)Jacket Color(CL)
    GJXFH1=PVC
    2=LSZH
    3=PE
    No. Of Fiber
    01F,02F
    OM1=62.5/125 OM1
    OM2=50/125 OM2
    OM3=50/125 OM3
    OM4=50/125 OM4
    G652D=9/125 G652D
    G657A=9/125 G657A
    As noted in
    Color code chart

    Ordering Sample
    Part NumberDescription
    OC-GJXFH-22G652DWH2 cores Singlemode G652D GJXFH Fiber Optic Cable,
    LSZH jacket, White color.
