GYFTY Factory Price Non-Metallic Aerial Fiber Optic Cable
This GYFTY Factory Price Non-metallic Aerial Fiber Optic Cable are
suitable for outdoor aerieal installation. Non-metallic structure
with Amaid Yarn messager makes GYFTY Factory Price Non-metallic
Aerial Fiber Optic Cable reduce itself gravity.

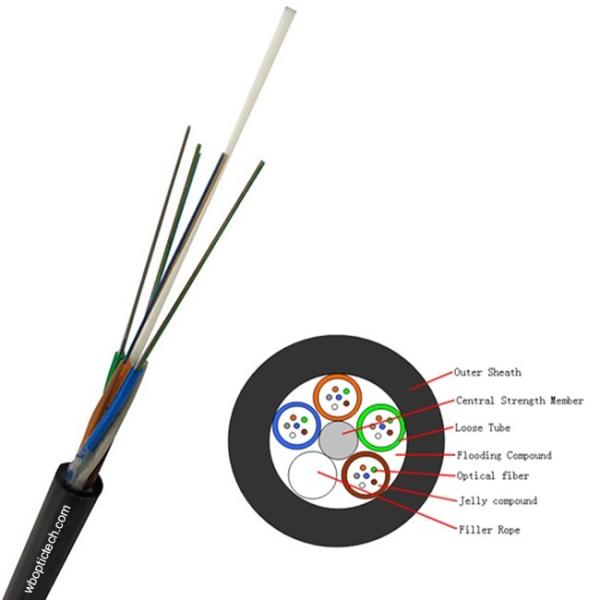

Structure characters
1.Non-metallic strengthen member
2.Reinforced with glass or aramid yarn
3.PE outer sheath
We can design any kind of structures according to enviromental
condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA
etc.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to
telecom network;
2. For power transmission system, much thunder areas and high
electro-magnetic inerference.
Specifications
| Cable Type | GYFTY |
| Fiber Type | G652D |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Technical parameter of ITU-T G.652D (B1.3) single-mode optical
fiber |
| Optical Characteristics | | | |
| Mode field diameter (MFD) | 1310nm 1550nm | 9.2±0.4 10.4±0.8 | µm µm |
| Cut-off wavelength (λcc) | | ≤1260 | nm |
| Attenuation coefficient | 1310nm 1383nm 1550nm | ＜0.35 ＜0.35 ＜0.22 | dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | | ≤0.05 | dB |
| Dispersion coefficient | 1288~1339nm 1271~1360nm 1550nm | ≤3.5 ≤5.3 ≤18 | Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | | 1300~1324 | nm |
| Max zero dispersion slope | | ≤0.093 | Ps/(nm2.km) |
| Group index of refraction (typical value) | 1310nm 1550nm | 1.466 1.467 | |
| Geometric characteristic | | | |
| Cladding diameter | | 125.0±1.0 | µm |
| Core/cladding concentricity error | | ≤0.8 | µm |
| Cladding non-circularity | | ≤1.0 | % |
| Coating diameter | | 245.0±10 | µm |
| Cladding/coating concentricity error | | ≤12.0 | µm |
| Coating non-circularity | | ≤8 | % |
| Diameter of colored coating | | 250.0±15 | µm |
| Mechanical characteristic | | | |
| Curling (radius) | | ≥4 | m |
| Proof stress | | ＞0.69 | Gpa |
| Coating strip force | Average value Peak value | 1.0-5.0 1.3-8.9 | N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | | ≥20 | |
| Item | Description |
| Tensile strength(N) | Long-term | 600 |
| Short-term | 1500 |
| Crush(N/100mm) | Long-term | 300 |
| Short-term | 1000 |
| Min. Bend Radius | Static | 10D |
| Dynamic | 20D |
| Temperature Range(℃) | Operation | -40℃ - +70℃ |
| Installation | -10℃ - +50℃ |
| Storage | -40℃ - +70℃ |
Our Company
Dongguan TW-SCIE Co., Ltd. is a high-tech enterprise specializing in the research and
development, production, processing, sales and network engineering
of optical fiber communication products, and has independent import
and export rights. The company has a group of loyal, dedicated,
wise, strong professional and technical talents, committed to
tracking the world's advanced optical communication products
development and application. The company R & D, production,
management of the main products are optical fiber, optical cable,
optical transceiver, optical MODEM and so on. Products are widely
used in communication, electric power, railway, military and other
related departments, exported to France, India, Singapore, Malaysia
and other countries.
Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest
quality optical fiber cable products & services to our customers
by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's
requirements;
3. Ensuring that our people are properly trained so that they are
better able to serve our customers.
Please feel free to contact us for cooperation and excellent
service !
