    Light Weight GYXTW Outdoor Fiber Optic Cable With Unitube Light Armored Structure

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : GYXTW
    Certification : ROHS REACH SGS ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,MoneyGram
    Supply Ability : 200km/Day
    Delivery Time : one week
    • Product Details
    • Company Profile

    Light Weight GYXTW Outdoor Fiber Optic Cable With Unitube Light Armored Structure

    Light Weight GYXTW Outdoor Fiber Optic Cable With Unitube Light Armored Structure


    ·Description

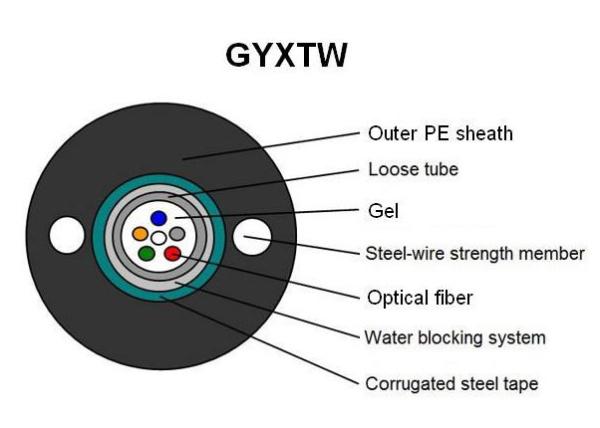

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
    ·Characteristics
    · Good mechanical and temperature performance
    · High strength loose tube that is hydrolysis resistant
    · Special tube filling compound ensure a critical protection of fiber
    · Crush resistance and flexibility
    · PSP enhancing moisture-proof
    · Two parallel steel wires ensure tensile strength
    · Small diameter, light weight and friendly installation
    · Long delivery length
    ·Standards
    GYXTW cable complies with Standard YD/T 769-2003.
    ·Optical Characteristics
    G.652G.65550/125μm62.5/125μm
    Attenuation
    (+20ºC)
    @850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm≤0.36 dB/km≤0.40 dB/km
    @1550nm≤0.22 dB/km≤0.23dB/km
    Bandwidth (Class A)@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelengthλcc≤1260nm≤1480nm
    ·Technical Parameters
    Cable TypeFiber CountCable Diameter
    mm
    Cable Weight kg/kmTensile Strength
    Long/Short Term N
    Crush Resistance
    Long/Short Term
    N/100mm
    Bending Radius
    Static
    /Dynamic
    mm
    GYXS/GYXTW-2~122~1210.0105600/1500300/100010D/20D
    GYXS/GY XTW-2~122~1210.61241000/30001000/300010D/20D
    GYXS/GY XTW-14~2414~2412.51491000/30001000/300010D/20D
    GYXS/GY XTW-26~3626~3614.01901000/30001000/300010D/20D
    GYXS/GY XTW-38~4838~4815.02161000/30001000/300010D/20D
    Storage/Operating Temperature : -40ºC to + 70ºC

    Optic Cable Technical data:
    Fiber Num.Outer diameter (mm)Weight (kg/km)Min.Bending radius(mm)Tension (N)Crash loading (N/100mm)
    StaticDynamicShort termLong termShort termLong term
    2-128.99010 times O.D.20 times O.D.15006001000300
    14-2410.2110
