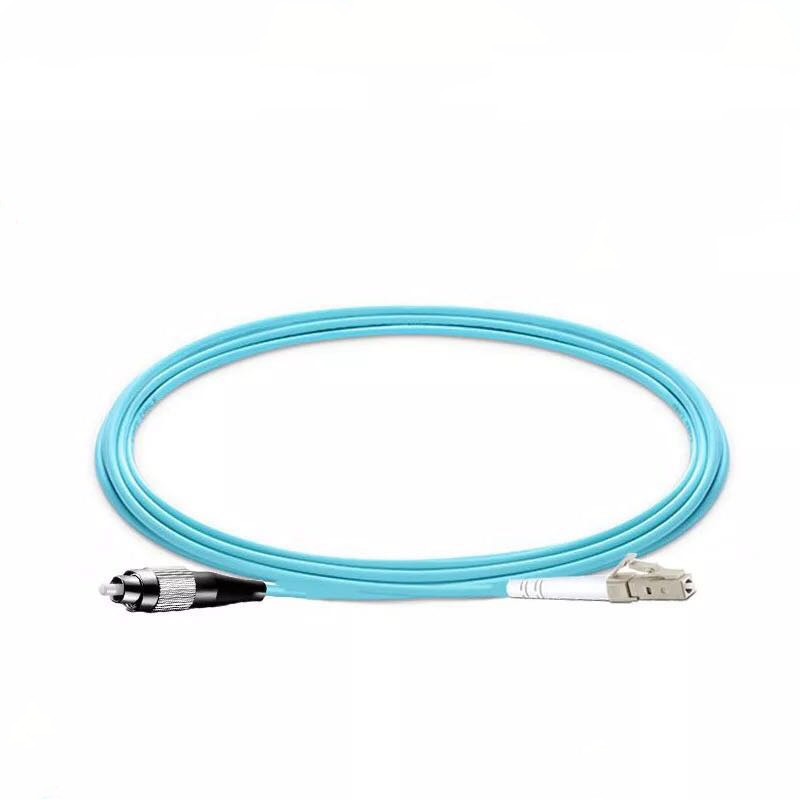

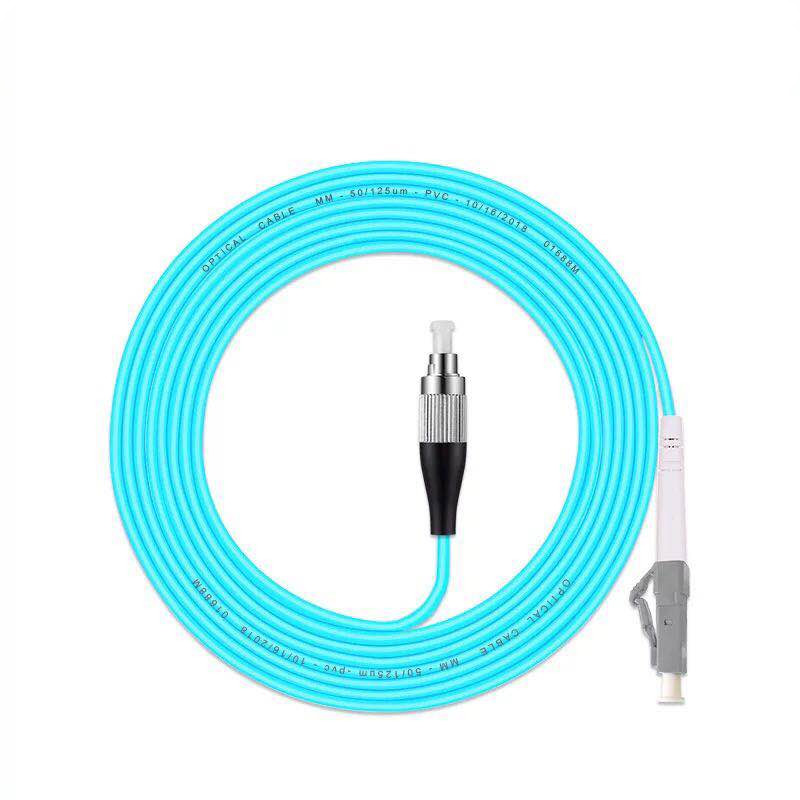

5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper

DONGGUAN TW-SCIE CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper from wholesalers

    Buy cheap 5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper from wholesalers
    • Buy cheap 5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper from wholesalers
    • Buy cheap 5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper from wholesalers

    5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : FC/UPS-LC/UPS
    Certification : ROHS REACH SGS ISO
    Price : Negotiable
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 200km/Day
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper

    5PCS/lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125

    Fiber Cable Multimode Simplex Optical Jumper

    5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper5PCS/Lot FC/UPC -LC/UPC OM3 Fiber Optic Patch Cord 10G 50/125 Fiber Cable Multimode Simplex Optical Jumper
    Deecription
    A fiber optic patch cord has a high refractive index core, low refractive index coating, aramid yarns, and protective jacket. It transmits optic signals with minimal loss, is protected from damage, and has different diameters for different cable types.
    Features
    The product has low insertion loss, low back reflection, and high return loss.

    It is factory-terminated and tested for quality assurance.

    Fiber options include G.652, G.657, OM1, OM2, OM3, and PM Panda Fiber.

    Connector options include FC, SC, LC, ST, MU, E2000, MTRJ, MPO, and MTP.

    Polishing options include PC, UPC, and APC.

    The feature connector has ceramic ferrules for durability and good interchange.

    It offers good repeatability and excellent environmental adaptability.

    It is compliant with CE, ROHS, and FCC regulations.

    The fiber mode options are Single-Mode (SM) with a diameter of 9/125um and Multimode (MM) with a diameter of 50-62.5um/125um.


    Applications


    Patch cables are commonly used for making connections to CATV (Cable Television), telecommunication networks, computer fiber networks, and fiber test equipment.

    They can be applied in various settings such as communication rooms, FTTH (Fiber to The Home) networks, LAN (Local Area Network) installations, FOS (Fiber Optic Sensor) systems, Fiber Optic Communication Systems, and optical fiber-connected and transmitted equipment.

    They are also used in Defense combat readiness and other similar contexts.


    Specifications


    Fiber Optic Patch Cord FC SC STFiber Connector LC MU MTRJ E2000
    ItemModelPCUPCAPCPCUPCAPC
    Insertion lossSM≤0.2dB≤0.2dB≤0.2dB≤0.2dB≤0.2dB≤0.2dB
    MM≤0.3dB≤0.2dB-≤0.3dB≤0.2dB-
    Return lossSM≥45dB≥55dB≥65dB≥45dB≥50dB≥60dB
    MM≥35dB≥35dB-≥35dB≥35dB-
    Repeatability≤0.1dB≤0.1dB
    Interchangeability≤0.2dB≤0.2dB
    Operating temperature-40℃~+75℃-40℃~+75℃
    Storage temperature-40℃~+85℃

    -40℃~+85℃
