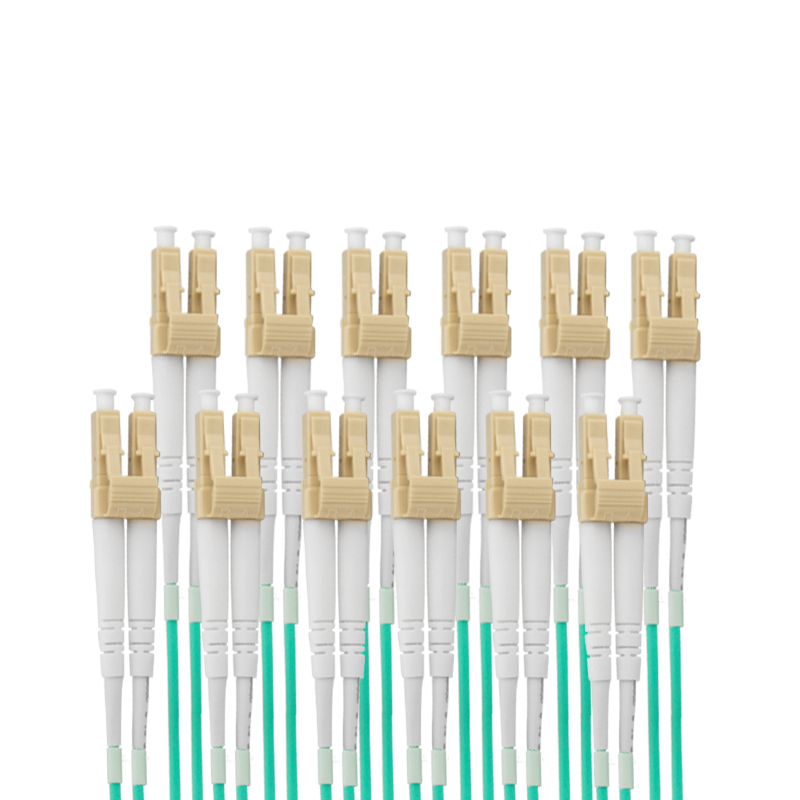

1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector

DONGGUAN TW-SCIE CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector from wholesalers

    Buy cheap 1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector from wholesalers
    • Buy cheap 1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector from wholesalers
    • Buy cheap 1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector from wholesalers
    • Buy cheap 1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector from wholesalers
    • Buy cheap 1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector from wholesalers

    1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : MPO-LC 24
    Certification : ROHS REACH SGS ISO
    Price : usd120/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200km/Day
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector

    1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector High Band Width

    MPO OM3 MULTIMODE CONNECTOR

    • MPO OM3 MULTIMODE CONNECTOR With this MPO fiber cable, you are ready for deployment in any multimode 10 GB 50/125 MTP/MPO network.
    • 10 GB OM3 fiber optic patch cables feature an extremely high bandwidth--almost 3x that of a typical multimode cable.
    • The push-on connectors hold the cable securely in place.
    • This multimode, MTP/MPO fiber cable is comprised of 24 fibers or 12 duplex channels within each connector.
    • These high density cables are perfect when you have limited space and but still want that great fiber connection.

    Length3mVibration (dB)≤ 0.1 (5 to 50Hz, 1.5mm)
    ConnectorsMPO to LCTensile strength≥200N
    CoreMulti Mode FiberThe high temperature≤ 0.2dB (+85 ° C for 50 hours)
    DensityDuplexLow temperature≤ 0.2dB (-40 ° C for 50 hours)
    FinishPC PolishTemperature cycling≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)
    Interchangeability (dB)≤ 0.1Humidity≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)

    Features
    • Ceramic Ferrule;
    High return loss;
    Low insertion loss;
    Good repeat-ability and and ex-changeability;
    Excellent Polished and 100% tested;
    Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
    Application
    Local Area Network (LAN)
    Data communication network
    Telecommunication optical transmission network
    Optical access network(OAN)
    Active device termination
    Fiber optics data transmission(FODT)
    Test Equipment
    How To Choose The Right Fiber Optic Cable Type?
    (The difference of OM4 and OM3 fiber mode as the following)
    1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
    2. The effective modal bandwidth for OM4 is more than double that of OM3.
    3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
    Designation
    Fiber Dia.(μm)
    Type
    Fast Ethernet 100BASE-FX
    1 Gigabit Ethernet 1000BASE-SX
    1 Gigabit Ethernet 1000BASE-LX
    10Gbps Ethernet 10GBASE
    40Gbps Ethernet 40GBASE SR4
    100Gbps Ethernet 100GBASE SR4
    OM1
    62.5/125
    Multimode
    2000M
    275M
    550M
    33M
    Not supported
    Not supported
    OM2
    50/125
    Multimode
    2000M
    550M
    550M
    82M
    Not supported
    Not supported
    OM3(Laser Optimized)
    50/125
    Multimode
    2000M
    550M
    550M
    300M
    100M(SR4)
    100M(SR4)
    OM4(Laser Optimized)
    50/125
    Multimode
    2000M
    550M
    550M
    400M
    150M(SR4)
    150M(SR4)
    Singlemode
    9/125
    Singlemode
    2000M
    5km at 1310nm
    5km at 1310nm
    10km at 1310nm
    N/A
    N/A

    Shipping & Payment
    1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector
    FAQ & Certification
    1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector
    1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector

    Company Profile

    Dongguan TW-SCIE Co., Ltd.is located in Qingxi Town, a beautiful industrial town in Dongguan City, Guangdong Province, and also have other place in Deyang Sichuan .covering an area of more than 10,000 square meters, with more than 200 employees. Since its inception, the company adheres to the concept of "continuous innovation, the pursuit of excellence", the integrity of the enterprise, accurate positioning, long-term commitment to the development of optical fiber communication products and market expansion. Nowadays, Tewang has a modern office environment, advanced production equipment and a group of high-quality scientific research and technical personnel and management personnel, and has become a fiber optic communication products research and development, production, sales and network engineering as a whole, and has the right to import and export the emerging high-tech enterprises.
