    OPGW Ground Wire 48 Core Outdoor Aerial Fiber Optic Cable

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : OPGW
    Certification : ISO9001/CE/ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Delivery Time : 20 working days
    Supply Ability : 200 km per day
    • Product Details
    • Company Profile

    OPGW Ground Wire 48 Core Outdoor Aerial Fiber Optic Cable

    OPGW Ground Wire 48 Core Outdoor Aerial Fiber Optic Cable

    Description

    The central steel tube is covered with aluminum and surrounded by single or double layers of aluminum-clad steel wires (ACS) or a combination of ACS wires and aluminum alloy wires. The Al-covered stainless steel tube design enhances the cross-sectional area of aluminum, resulting in improved performance against lightning and fault current. This design is suitable for transmission lines that require a small diameter and high fault current.

    Features


    The cable has a large diameter and high fiber capacity.

    Its structure is stable and highly reliable.

    It has excellent resistance to lateral forces and a remarkable short-circuit current capacity.

    The optimal stranding design allows for excess length of secondary optical fiber.

    The number of strands can be arranged in two or three layers.

    It can be paired with common ground wires.


    Speicfications




    Structure

    Max fiber count

    AS sectional area

    Diameter

    (mm)

    Weight (kg/km)

    RTS

    (kN)

    20°C DC resistance (O/km)

    40-200°C Allowable short circuit current capacity(KA2.S )

    OPGW-48B1.3-90- [112;45]

    1/2.6/20AS+4/2.5/20AS+

    48

    ≈90

    13.2

    ≤641

    ≥112

    ≤0.98

    ≥45

    11/2.8/20AS,Unit2/2.5

    OPGW-48B1.3-90- [57;67]

    1/2.6/40AS+4/2.5/40AS+

    48

    ≈90

    13.2

    ≤457

    ≥57

    ≤0.52

    ≥67

    11/2.8/40AS,Unit 2/2.5

    OPGW-24B1.3-100-[118;50]

    1/2.6/20AS+5/2.5/20AS+

    24

    ≈100

    13.2

    ≤674

    ≥118

    ≤0.93

    ≥50

    11/2.8/20AS,Unit 1/2.5

    OPGW-24B1.3-100-[60;74]

    1/2.6/40AS+5/2.5/40AS+

    24

    ≈100

    13.2

    ≤479

    ≥60

    ≤0.49

    ≥74

    11/2.8/40AS,Unit 1/2.5

    OPGW-24B1.3-110-[133;63]

    1/2.6/20AS+5/2.5/20AS+

    24

    ≈110

    14

    ≤760

    ≥133

    ≤0.83

    ≥63

    10/3.2/20AS,Unit 1/2.5

    OPGW-24B1.3-110-[140;68]

    1/2.8/20AS+5/2.7/20AS+

    24

    ≈110

    14.3

    ≤791

    ≥140

    ≤0.80

    ≥68

    11/3.05/20AS,Unit 1/2.6

    OPGW-24B1.3-110-[67;95]

    1/2.9/20AS+5/2.8/20AS+

    24

    ≈37

    14.1

    ≤473

    ≥67

    ≤0.40

    ≥95

    12/2.8/AA,Unit 1/2.7

    ≈74(AA)

    OPGW-36B1.3-120-[145;73]

    1/3.0/20AS+5/2.9/20AS+

    36

    ≈120

    14.6

    ≤820

    ≥145

    ≤0.77

    ≥73

    12/2.9/20AS,Unit 1/2.8

    OPGW-36B1.3-120-[95;98]

    1/3.0/30AS+5/2.9/30AS+

    36

    ≈120

    14.6

    ≤700

    ≥95

    ≤0.55

    ≥98

    12/2.9/30AS,Unit 1/2.8

    OPGW-36B1.3-120-[74;110]

    1/3.0/40AS+5/2.9/40AS+

    36

    ≈120

    14.6

    ≤582

    ≥74

    ≤0.42

    ≥110

    12/2.9/40AS, Unit 1/2.8
    OPGW-72B1.3-120-[147;76]1/3.2/20AS+4/3.0/20AS+72≈12015.2≤832≥147≤0.76≥76
    12/3.0/20AS, Unit 2/2.9

    Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

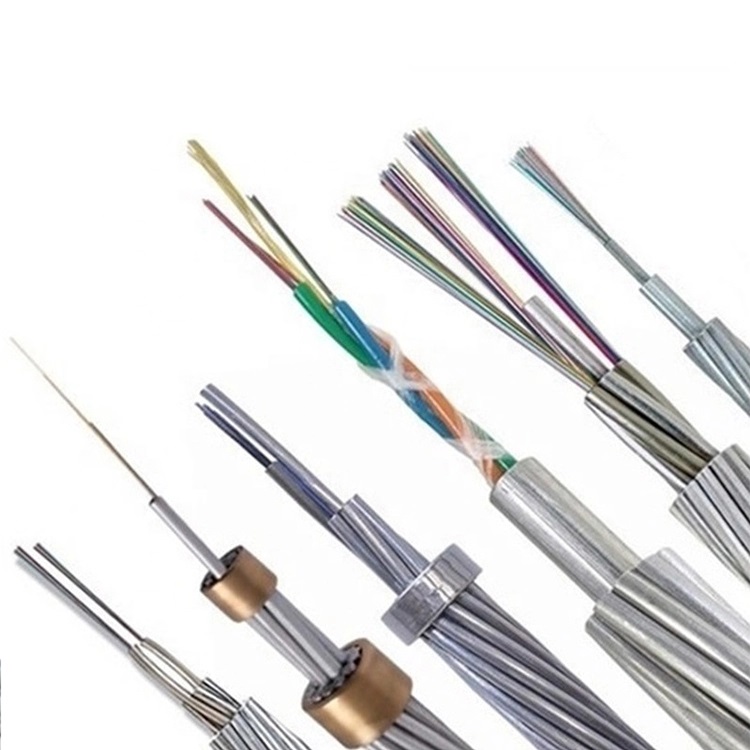

    Structure and Product Pictures
