Brand Name : | TW |
Model Number : | Indoor FTTH |
Certification : | SGS ROHS REACH ISO |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 10000KM/mouth |
Delivery Time : | 15 Working Days |

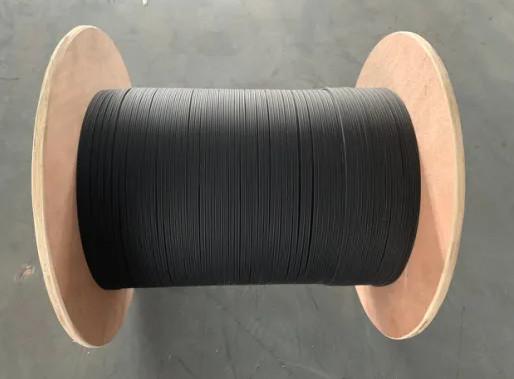

Indoor FTTH 1 Core 2 Cores Drop Cable
Product Description
The FTTH 2 Core Indoor Fiber Optic Cable is designed for easy
installation and high performance as an access building cable.
Structure &Properties
This cable exhibits favorable mechanical and environmental
properties.
The FTTH 2 Core Indoor Fiber Optic Cable meets relevant standards
for flame retardancy.
It also meets relevant standards for mechanical characteristics.
This cable is soft, flexible, and easy to lay and splice, with
high-capacity data transmission capabilities.
It meets various market and client requirements.
FTTH 2 Core Indoor Fiber Optic CableTechnical Date
ITEMS | UNITS | SPECIFICATION |
Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
Mode Field Diameter | um | 9.2±0.5 |
Mode Field Concentricity | um | ≤0.8 |
Cladding Diameter | um | 125±1.0 |
Cladding Non-circularity | % | ≤1.0 |
Coating cladding concentricity error | um | ≤12.5 |
Coating Diameter | um | 245±10 |
Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
Proof Test | kpsi | ≥100 |
Our Certificate
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
Packing & Shipping
Company Profile
DONGGUAN TW-SCIE CO.,LTD.is a subsidiary of Tewang Group,
established in 2002.After more than ten years of unremitting
efforts, it has developed into a comprehensive high-tech optical
fiber communication product development.production. sales and
network engineering.The company's headquarters is located in Oingxi
Town.Dongguan City,a beautiful industrial town.It has two modern
industrial production bases in Dongguan,Guangdongand
Deyang,Sichuan, with an annual output of 20 million core kilometers
of fiber optic cables.
As professioanl manufacturer on optical fibre cables, we can not
only offer you optical fibre cables with high quality and
competitive price, but also the structures as your requirment. So
please feel free to contact with us for cooperation and excellent
service.
![]() |
