    Double jacket 24 Core Non Metallic Structure self support ADSS cable 100m span for Aerial application

    Ask Lasest Price
    Brand Name : TW-SCIE or OEM
    Model Number : ADSS
    Certification : SGS ROHS REACH ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2000 km/per day
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    Double jacket 24 Core Non Metallic Structure self support ADSS cable 100m span for Aerial application

    ADSS Fiber Optic Cable

    All-dielectric Self-support 24 Core Fiber Optic Cable

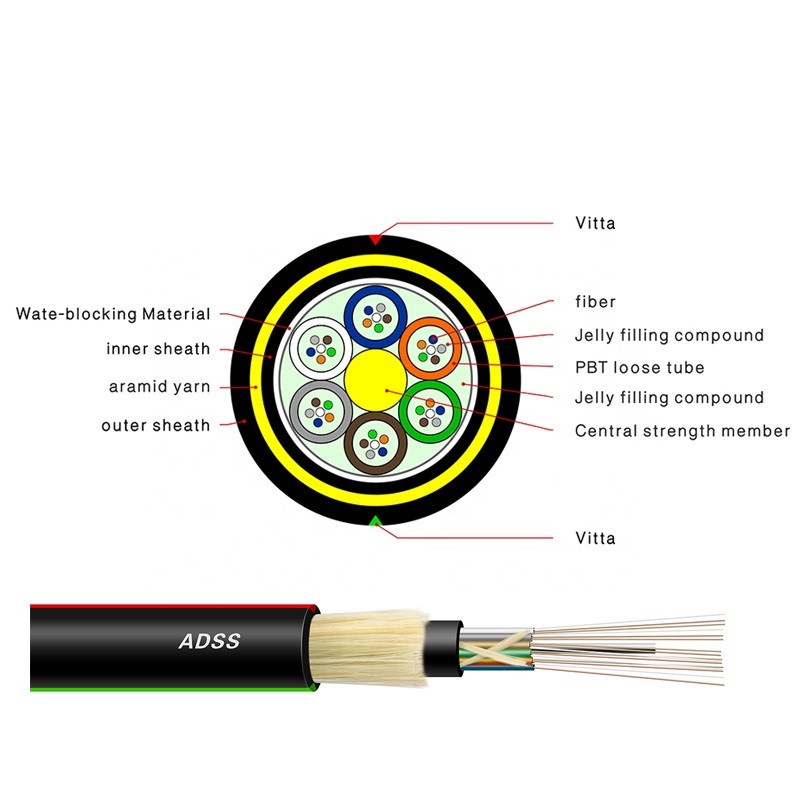

    Structure Characters
    Loose tube with non-metallic strengthen member
    High flexible amaid yarn
    Can work at electric field<=25KV/m in a long period


    Technical Characteristics


    24 optic fibers
    Light weight, laying with the power line
    Strong anti-pull performance, more than 90KN.
    Non metallic structure provides good insulation, excellent lightning resistant.
    Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
    Excellent bullet resistant performance
    Excellent tracking resistant performance.
    Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault



    Application Scenario

    Power Telecommunication


    Technical Date:(for 24 core fiber )


    Fiber Optic RangeSpan(M)Out-diameter(MM)Module(N/)Linear Expanding Coefficient(1/K)Weight(KG/KM)Safely running strain(N)
    Weather condistion:wind speed: 35m/s and 0mm ice thickness.
    2480015.52.86X100.02X1020029680
    Weather condistion:wind speed: 10m/s and 5mm ice thickness.
    2480014.52.33X100.11X1018519600

    Image Describtion

    Certification
    REACH,ROHS,TLC Telecom Certificate,Environmental Management System Certification,ISO9001:2000,Utility Model Patent Certificate




    Packing & Shipment & FAQ

    With wooden drum. covered with a thermal wrap .With plastic protection caps to prevent water penetration



    Double jacket 24 Core Non Metallic Structure self support ADSS cable 100m span for Aerial application

    Double jacket 24 Core Non Metallic Structure self support ADSS cable 100m span for Aerial application
