GYXTW 2-24 Core Single Mode Central Loose Tube Outdoor Aerial and
Duct Fiber Optic Cable
These central loose tube optical fiber ribbon cables are suitable
for installation in aerial or duct environment for communication
between bureaus, metropolitan network, access network and is
especially suitable for the situation where high-density fibers is
expected.
The tube is wrapped with a layer of PSP longitudinally,excellent
crush-resistant performance. Between the PSP and the loose tube
water-blocking material is applied to keep the cable compact and
watertight. Two parallel steel wires are placed at the two sides of
the steel tape,to ensure tensile strength. The cable is completed
with a single polyethylene (PE) sheath.
Features
1.Small outer diameter, light weight and convenient construction
2.Stable fiber excess length control
3.After the cable is formed, the additional attenuation of the
fiber is almost zero, and the dispersion value does not change
4.Excellent environmental performance
Speicfication
Fiber Count | Diameter (mm) | Cable weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
| 2~12 | 8.9 | 90 | 600/1500 | 1000/3000 | 10D/20D |
| 14-24 | 10.2 | 110 | 600/1500 | 1000/3000 | 10D/20D |
Note : This datasheet can only be a reference, but not a supplement
to the contract. Please contact the sales for the details.

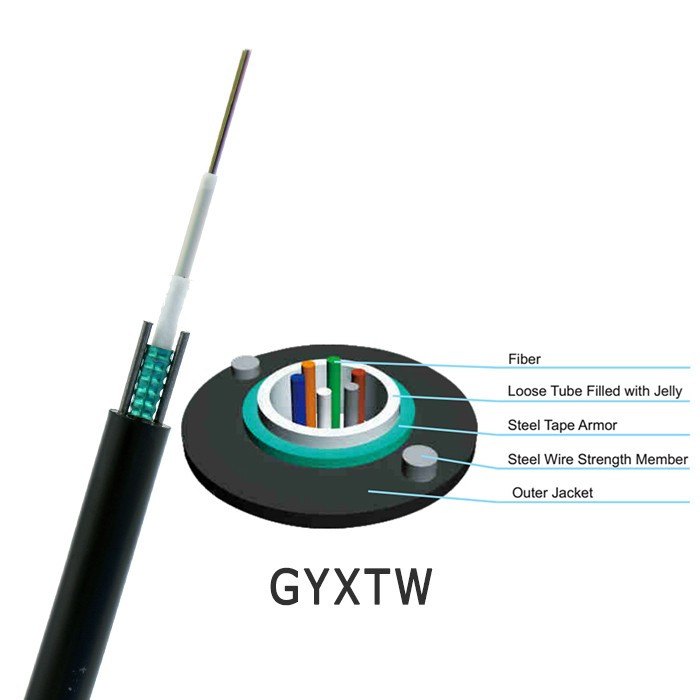

Structure and Product Pictures
Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement.
Each length will be shipped on a separate iron-wooden drum. The
minimum barrel diameter of the drum will not be less than 30 times
the cable diameter.
The cable ends will be sealed with plastic protection caps to
prevent water penetration. The ends will be easily accessible for
testing. A final inspection test report with attenuation
performance data for each fiber is attached inside the drum.
