    36 Core All Dielectric Self - Support Adss Optical Fiber Cable

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : ADSS
    Certification : ROHS REACH SGS ISO
    Price : usd0.4/meter
    Payment Terms : L/C, T/T, Western Union,MoneyGram
    Supply Ability : 200km/Day
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    36 Core All Dielectric Self - Support Adss Optical Fiber Cable


    ADSS 2-Core Single-Mode Special All-Dielectric Self-Support Aerial

    Fiber Optic Cable

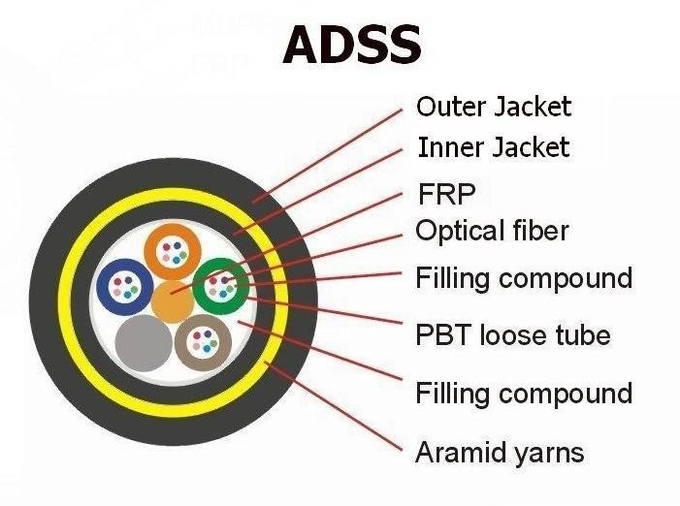

    36 Core All Dielectric Self - Support Adss Optical Fiber Cable

    36 Core All Dielectric Self - Support Adss Optical Fiber Cable

    ADSS cable for high-voltage transmission lines uses power system poles. Non-metallic, self-supporting, safe, cost-effective, minimizes damage, no interference, suits large spans. Popular in power system urban/rural network transformations.

    Features

    Optical fiber designs include single-mode, multi-mode, and integrated cable.

    The aerodynamic performance of the optical cable is superior due to its sleek shape.

    The structure of the all-dielectric optical cable is conducive to installation and maintenance.

    With a wide temperature adaptability range and small linear expansion coefficient, it meets the requirements of harsh environments.

    The leakage resistance voltage is 25KV.

    The optical cable has extremely high tensile strength and anti-elastic properties due to torque balance and aramid winding.


    Specifications


    Elements of ADSS optical cable design include

    A. Environmental factors:

    a. Wind speed
    b. Ice thickness
    c. Air temperature d. Topography

    B. Factors related to erected power lines:

    a. Rated high voltage and maximum operating voltage b. Pole tower type and type and arrangement of conductor and ground wire c. Length of tensile section, standard gear distance (representing gear distance, maximum horizontal gear distance, maximum vertical gear distance) d. The maximum sag of the conductor and ground wire of each tensile section.


    Technical specifications for ADSS optical cable

    a. Cable core and diameter

    b. Optical cable model and weight

    c. Tensile strength and compressive strength

    d. Vibration and dancing

    e. Elongation and excess length

    f. Anti-tracking properties of outer sheath

    g. Hardware compatibility.


    Optical Charateristics

    Fiber TypeG.652G.65550/125^m62.5/125^m

    Attenuation

    (+20X)

    850 nm<3.0 dB/km<3.3 dB/km
    1300 nm<1.0 dB/km<1.0 dB/km
    1310 nm<0.36 dB/km<0.40 dB/km
    1550 nm<0.22 dB/km<0.23 dB/km
    Bandwidth850 nm>500 MHz-km>200 Mhz-km
    1300 nm>500 MHz-km>500 Mhz-km
    Numerical Aperture0.200±0.015 NA0.275±0.015 NA
    Cable Cut-off Wavelength cc<1260 nm<1450 nm

    36 Core All Dielectric Self - Support Adss Optical Fiber Cable36 Core All Dielectric Self - Support Adss Optical Fiber Cable
