Cable Structure

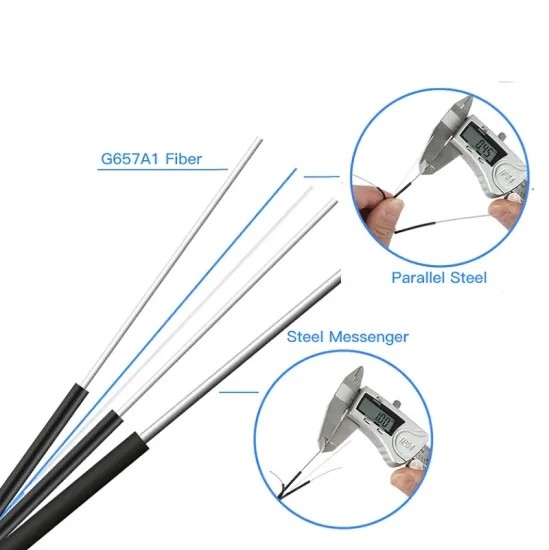

The design of the cross-section is bow-tie type, and it consists of
two parallel steel wires as strength members, with G657A1 flex
durable fiber in the middle. The outer sheath can be made of PE or
LSZH material, and the messenger is a 1.0mm steel wire.
Product Construction
Fiber
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.
Self-supported Member
Steel Wire
Outer Jacket
UV and Flame resistant LSZH
Features
Compact, soft, flexible, install easily.
Applications
This cable is commonly used as an access cable in outdoor-to-indoor
customer premises networks. It can also be used as an access
building cable in premises distribution systems, particularly for
indoor or outdoor aerial access cabling.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
Structure and Technical Specifications
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 |
Note
This datasheet is for referance, please contact us for more
details.
The cable core is made up of colored coating fiber with a diameter
of 250μm.
The cable's tensile and crush properties conform to the values
specified in the table when FRP and steel strength members are
used.
