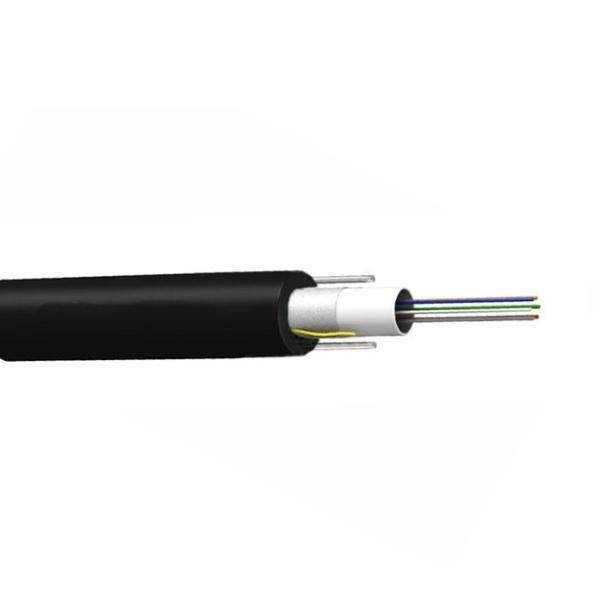

Telecommunication Outdoor Unitube Optical Fiber Cable Aerial / Duct
Round Wire Fiber Optic Cable GYXY
Description:
The fibers, 250μm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. Over the tube, water-blocking material is applied
to keep the cable watertight. Two parallel FRP are placed at the
two sides. The cable is completed with a PE sheath.
Feature:
--- Good mechanical and temperature performance
--- High strength loose tube that is hydrolysis resistant
--- Special tube filling compound ensure a critical protection of
fiber
--- Two parallel FRP ensure tensile strength
--- PE sheath protects cable from ultraviolet radiation
--- Small diameter, light weight and friendly installation
--- Long delivery length
Specification:
--- Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
--- Fiber : G652D
--- Installation : Suitable for aerial or duct
--- Application : Apply to Long distance communication system,
Local area network system and Subscriber
network system
--- Lifetime : above 30 years
--- Operating temperature : -40℃~+70℃
--- Permisson bent radius
Static : 10 times O.D. Dynamic : 20 times O.D.
Optical Charateristics:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
Attenuation (+20X) | 850 nm | | | <3.0 dB/km | <3.3 dB/km |
| 1300 nm | | | <1.0 dB/km | <1.0 dB/km |
| 1310 nm | <0.36 dB/km | <0.40 dB/km | | |
| 1550 nm | <0.22 dB/km | <0.23 dB/km | | |
| Bandwidth | 850 nm | | | >500 MHz-km | >200 Mhz-km |
| 1300 nm | | | >500 MHz-km | >500 Mhz-km |
| Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | | |
Note : This datasheet can only be a reference, but not a supplement
to the contract. Please contact our sales people
for more detailed information.
Application:
Aeiral or Duct.
Standard:
YD/T 769-2010
Related Products:
Who we are:
--- 15 years of collective experience in the field of Optical
communication products.
--- Rich experience in the international trade and highly appraised
by our international customers for our integrity, good quality and
on time delivery.
--- Vast clientele in Europe , South America and Southeast and
Asia.
--- Products supplied by DONGGUAN TW-SCIE CO., LTD. are engineered
for local and international customers to meet a variety of
environmental operating conditions and to meet local and
international standards.
Why us?
We deliver Excellent quality and comprehensive range of products
that meet the needs of our customers as they grow.
Process:
Shipping and Packing:
Wooden Drum
FAQ:
1. Product quality guarantee period?
20 years Guarantee for fiber optic cable
2. What is your delivery time?
Within 48 hours for 30KM normal kinds of fiber optic cable
3. MOQ: what is your minimum quantity?
MOQ for fiber optic cables 3KM
There is no MOQ required for fiber optic patch cords,as there's
stock for normal kinds
4. Payment
For large orders: T/T LIC
For small orders: T/T Western Union and Paypal are acceptable
5. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of
which is optional
