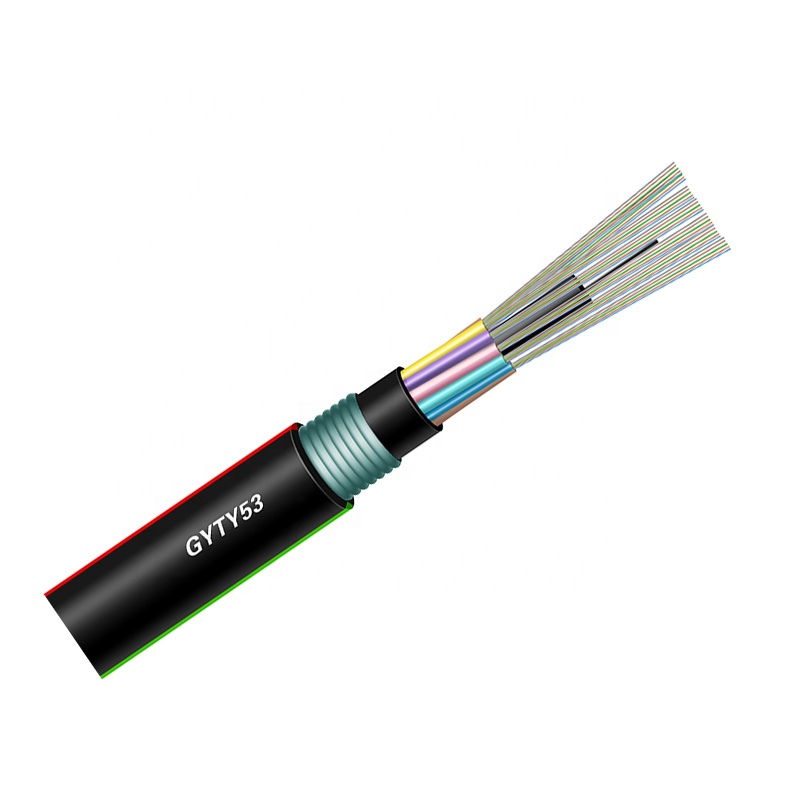

    Underground Communication GYTY53 Single Mode Armored Outdoor Fiber Cable

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : GYTY53
    Certification : CE, ROHS, REACH, SGS, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, D/A, D/P, MoneyGram
    Supply Ability : 12000km/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Underground Communication GYTY53 Single Mode Armored Outdoor Fiber Cable

    GYTY53 Aerial/Duct Stranded Loose Tube Armored Outdoor Fiber Optic Cable


    GYTY53 underground fiber optic cable is an outdoor communication optical cable of metal strength member of the loose tube jelly-filled structure, with polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath.The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. Polyethylene (PE) is extruded as inner sheath, then water swollen yarns and corrugated steel tape are longitudinally applied over the inner sheath, and combined with a durable PE sheath.


    Features


    • High quality optical fiber provides good transmission performance

    • Accurate fiber excess length control ensures excellent mechanical and temperature performance

    • Special filling gel filled loose tubes provide perfect optical fiber protection

    • All section water blocking provide reliable performance of moisture-proof and water block

    • Corrosion resistance phosphated steel wire with high Young's modulus as central strength member gives high tensile strength

    • Longitudinal corrugated steel tape presents desirable crush resistance

    • Strict craft and raw material control enable lifespan over 30 years


    Application


    • Aerial / Duct

    • Connecting communication equipments

    • Multi-cores wiring system in data center


    Specifications


    Cable TypeGYTY53
    Fiber TypeSM
    ApplicationLong-distance communication, LAN
    Recommended installation methodsDirect buried
    EnvironmentOutdoor
    Temperature Range-40℃ to 70℃

    Fiber CountNominal Diameter (mm)Nominal Weight (kg/km)Max Fibers per TubeMax No. of (Tubes+fillers)Allowable Tensile Load (N)

    Allowable Crush

    Resistance

    (N/100mm)

    Short TermLong TermShort TermLong Term
    2~3012.2142653000100030001000
    32~4812.8155863000100030001000
    50~7213.61701263000100030001000
    74~9615.01921283000100030001000
    98~14416.622012123000100030001000
    >144Available upon customer’s request

    Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.


    Structure and Product Pictures


    Packing & Shipping


    Fiber optic cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
    The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
