    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : GYXTC8S
    Certification : ISO9001, RoHS, CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,MoneyGram
    Supply Ability : 100km/Day
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger

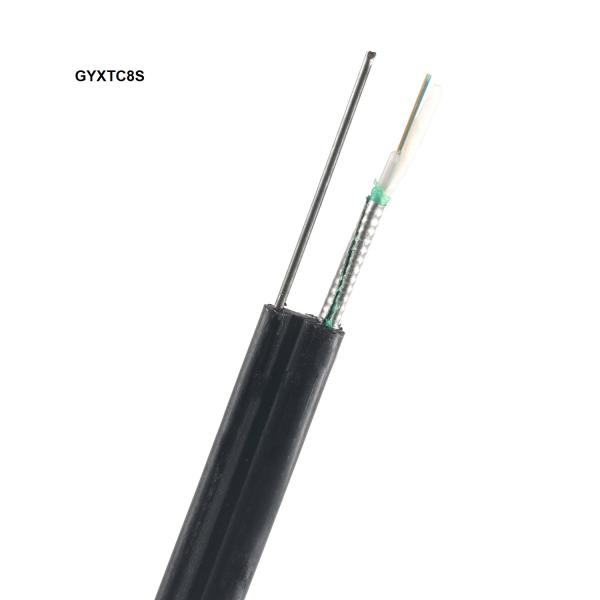

    GYXTC8S Uni-tube Outdoor Aerial Fiber Optic Cable with Figure 8 Shape

    Single Wire Messenger, PE Sheath


    Description

    GYXTC8S: Outdoor optical cable with metallic strength member, jelly-filled tube, and steel-polyethylene sheath​

    This is a self-supported figure 8 optical cable with fibers placed in a unit tube. The cable core is protected against water intrusion and migration by jelly or water-blocking material, and it is shielded by a corrugated steel tape armor. The whole unit, along with the galvanized steel messenger, is covered with a black polyethylene outer jacket.

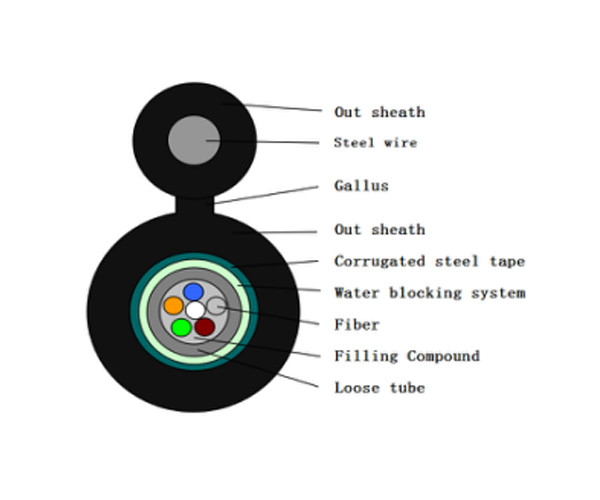

    Structure

    Self-supported figure 8 optical cable with water-blocking and steel tape armor, covered in black polyethylene.


    Specification


    Technical Parameters
    Cable Type
    Fiber Count
    Cable Diameter (mm)
    Cable Weight (kg/km)
    supporting wire Spec.
    connection diameter
    Tensile Strength
    Long/Short Term(N)
    Crush Resistance
    Long/Short Term (N/100mm)
    Bending Radius
    Static/Dynamic (mm)
    GYXTC8S
    2~12
    7.65*14.5
    118
    φ1.0mm*7 stranded wire
    H*W 3.0*2.5 mm
    1000/2500
    300/1000
    80D/160D
    GYXTC8S
    14-24
    8.2*15.4
    129
    φ1.0mm*7 stranded wire
    H*W 3.0*2.5 mm
    600/1500
    300/1000
    80D/160D
    Storage/Operating Temperature : -40℃ to + 70℃
    Optical Characteristics
    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation
    (+20℃)
    '@850nm
    ≤3.0 dB/km
    ≤3.0 dB/km
    '@1300nm
    ≤1.0 dB/km
    ≤1.0 dB/km
    '@1310nm
    ≤0.36 dB/km
    ≤0.40 dB/km
    '@1550nm
    ≤0.22 dB/km
    ≤0.23 dB/km
    Bandwidth
    (Class A)
    '@850nm
    ≥500 MHz·km
    ≥200 MHz·km
    '@1300nm
    ≥1000 MHz·km
    ≥600 MHz·km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.015NA
    Cable Cut-off Wavelength λcc
    ≤1260nm
    ≤1480nm

    Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger

    Application


    • Aerial.
    • Long distance communication and LAN.
    • Indoor shaft, building wiring.

    Relalted Products


    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger

    Packing & Shipping

    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger

    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger

    Certification & FAQ

    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger

    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger



    Company Profile


    DONGGUAN TW-SCIE CO., LTD. draws on 15 years of collective experience in optical communication products. Our international trade experience is extensive and we are highly regarded by customers worldwide for our integrity, good quality, and punctual delivery. We have a wide customer base in Europe, South America, Southeast Asia, and beyond. Our products meet local and international standards and are designed to perform under various environmental conditions. We aim to foster an environment that encourages innovation and technological advancement for our customers.


    Why us


    As our customers grow, we deliver a comprehensive range of products of excellent quality that meet their needs.


    GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire MessengerGYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger


    Quality GYXTC8S HDPE black outer Sheath Outdoor Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger for sale
