    12 24 72 96 Core FIG8 Aerial GYTC8S Loose Tube Stranded Fiber Optical Cable

    Ask Lasest Price
    Brand Name : TW-SCIE
    Model Number : GYTC8S
    Certification : ISO9001, RoHS, CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100km/Day
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    12 24 72 96 Core FIG8 Aerial GYTC8S Loose Tube Stranded Fiber Optical Cable

    12/24/72/96 Core Fig8 Aerial GYTC8S Fiber Optical Cable



    TW-SCIE is Alibaba.com Assessed Supplier. 6 Core Fiber Optic Cable including outdoor 6 Core Fiber Optic Cable, indoor 6 Core
    Fiber Optic Cable, ftth 6 Core Fiber Optic Cable.TW-SCIE 6 Core Fiber Optic Cable
    are widly used for communication, medical, military.
    The laying method including aerial, duct, direct burial, underwater, marine.
    6 Core Optical Fiber Cable Certificate including REACH,ISO9001, SGS, RoHS. 6 Core Optical Fiber Cable capacibility : 300km/day. We have varity of 6 Core Optical Fiber Cable modules, accept custom and supply OEM, ODM services. We have strong sales team, 24 hours supply consult and quotation for you.


    Competitive Advantages


    1.OEM fiber optic cable manufacturer
    2. Fiber brand : YOFC, CORNING,FUJIKURA
    3.Quality certification :ISO9001.ROSH.REACH
    4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
    5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service


    Characteristics


    1.Corrugated steel tape armored, double PE sheath provides high tesile strength and crush

    2.Special gel in the tube offers ceitical protection for the fibers

    3.Steel wire or FRP as central strength member

    4.Anti-UV PE jacket

    5.Resistant to high and low temperature changes, resulting in anti-aging and longer life-span


    Specification


    Fiber G652D

    CategoryDescriptionSpecifications
    Before cablingAfter cabling
    Optical SpecificationsAttenuation @1310 nm≤0.34 dB/km (max.)≤0.36 dB/km (max.)
    Attenuation @1550 nm≤0.20 dB/km (max.)≤0.22 dB/km (max.)
    Attenuation @1625 nm≤0.23dB/km≤ 0.25 dB/km
    Zero Dispersion Wavelength1300~1324 nm
    Zero Dispersion Slope≤ 0.090 ps/nm2·km

    PMD Link value (M=20cables Q=0.01% )

    maximum PMDQ

    0.2 ps/√km
    Cable Cutoff Wavelength (λcc)≤1260 nm

    Macro bending Loss

    (1 turn; Ф32 mm) @1550 nm

    (100 turns; Ф60 mm) @1625 nm

    (100 turns; Ф50 mm) @1310 &@1625 nm


    ≤ 0.05 dB

    ≤ 0.05 dB

    ≤0.05 dB

    Mode Field Diameter@1310 nm9.2±0.4μm
    @1550 nm10.4±0.5μm

    Dimensional

    Specifications

    Cladding Diameter125 ±0.7μm
    Core/clad concentricity error≤0.5μm
    Cladding Non-Circularity≤1.0%

    Mechanical

    Specifications

    Proof stress≥0.69Gpa
    Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
    for more detailed information.

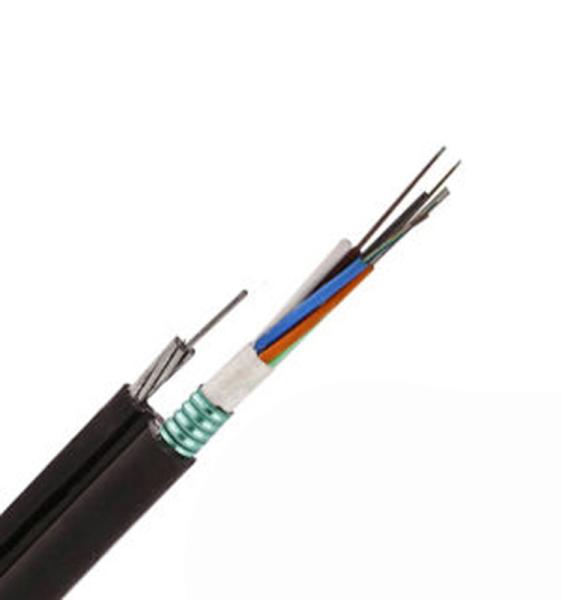

    GYTC8S Fiber Optic Cable Details
