    Outdoor Aerial Single Mode OPGW Fiber Optic Cable 36 Core

    Ask Lasest Price
    Brand Name : TW-Scie
    Model Number : OPGW
    Certification : ISO9001/CE/ROHS
    Price : Negotiable
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 3000KM Per week
    Delivery Time : 10-14days
    • Product Details
    • Company Profile

    Outdoor Aerial Single Mode OPGW Fiber Optic Cable 36 Core

    Professional OPGW Manufacturer Outdoor Aerial Single Mode OPGW

    36 Core Fiber Optic Cable

    Overview
    Quick Details
    Place of Origin:
    CN;Dongguan
    Brand Name:
    TW-Scie
    Model Number:
    OPGW2-3
    Number of Conductors:
    ≥ 10
    Fiber Mode:
    Single Mode
    Fiber count: 2-288:
    12-96
    Structure:
    Stranded loose tube
    Certificate:
    ROHS /CE / CPR / ISO9001
    OEM/ODM:
    Available
    Supply Ability
    Supply Ability:
    3000 Kilometer/Kilometers per Month
    Packaging & Delivery
    Lead Time :
    Quantity(Meters)1 - 3000>3000
    Est. Time(days)3To be negotiated

    Product description:

    OPGW is a type of cable structure with composite of optical transmission and overhead ground wire for power transmission. Its working in power transmission line both as optical fiber cable and overhead ground wire which can provide protection of lightning strike and conducting short circuit currency.The OPGW consist of stainless steel tube optical unit, aluminum cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.


    Application:

    Adapt to replace the aged ground wire and new structure of

    high voltage ground wire

    lighting protection and conduct the short circuit current

    Optical fiber communication ability


    Structural parameters

    Cable modelOPGW-60OPGW-70OPGW-90OPGW-110OPGW-130
    Number /diameter(mm) of stainless steel tube1/3.52/2.42/2.62/2.81/3.0
    Number /diameter of AL wire(mm)0/3.512/2.412/2.612/2.812/3.0
    Number /diameter of ACS wire(mm)6/3.55/2.45/2.65/2.86/3.0
    Diameter of Cable (mm)10.512.013.014.015.0
    RTS(KN)7545536480
    Cable weight (kg/km)415320374432527
    DC resistance(200C W/km)1.360.5240.4480.3860.327
    Modulus of elasticity(Gpa)162.096.195.995.697.8
    coefficient of Linear thermal expansion(1/×10-6)12.617.817.817.817.2
    Short circuit capacity (kA²s)24.057.378.9105.8150.4
    Max. operation temperature (C)200200200200200

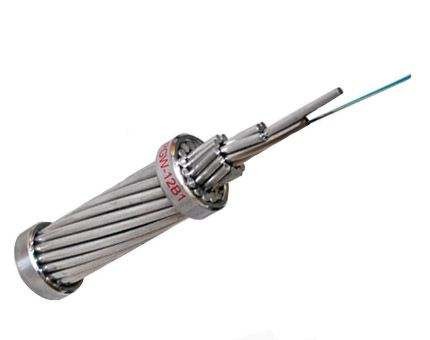

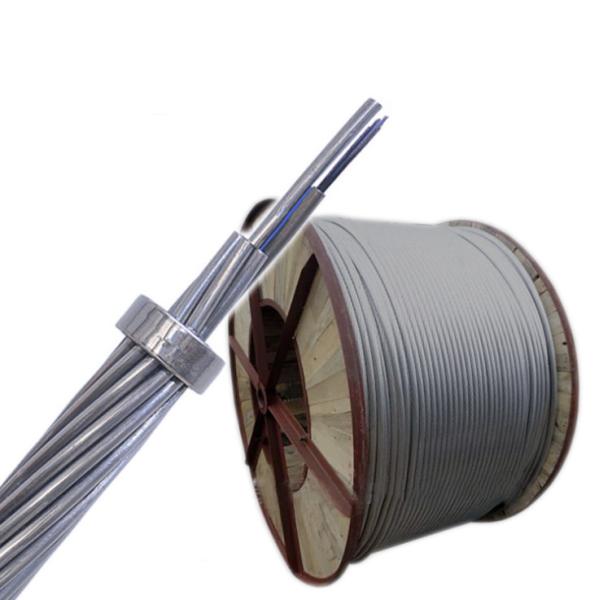

    Product show
    Outdoor Aerial Single Mode OPGW Fiber Optic Cable 36 Core
    Outdoor Aerial Single Mode OPGW Fiber Optic Cable 36 Core
    Outdoor Aerial Single Mode OPGW Fiber Optic Cable 36 Core
    Outdoor Aerial Single Mode OPGW Fiber Optic Cable 36 Core
    Outdoor Aerial Single Mode OPGW Fiber Optic Cable 36 Core
