FTTH Cable GJYXCH 2 Core Single Mode Figure 8 shape Optic Cable
Self-supported flat drop cable. The cable cross section is a fig.8
made a steel wire strength member.
Used in access network or as access cable from outdoor to indoor
in customer premises network.
Used as access building cable in premises distribution
system,especially used in indoor or outdoor aerial access cabling.
Features
Compact, soft, flexible, easy to install
Specifications
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
Tensile Strength
(N/100mm) | Crush Resistance (N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 |
Note : This datasheet can only be a reference, but not a supplement
to the contract. Please contact the sales for the details.

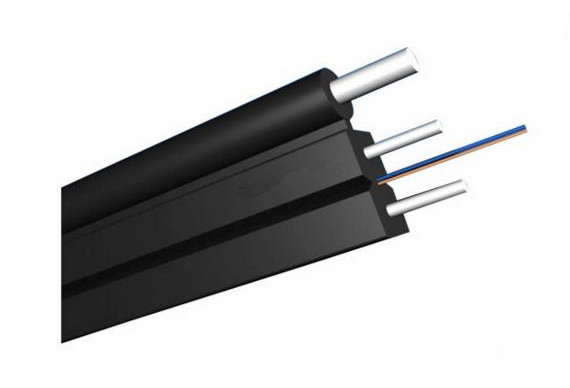

Structure and Product Pictures
Packing & Shipping
Cable is supplied in lengths as specified in PI or as requirement.
Each length will be shipped on a separate non-returnable wooden
drum. The minimum barrel diameter of the drum will not be less than
30 times the cable diameter.
The cable on each reel will be completely covered with a thermal
wrap which is fastened to the cable by packaging straps. This wrap
is reusable and provides excellent thermal and UV protection.
The cable ends will be sealed with plastic protection caps to
prevent water penetration. The ends will be easily accessible for
testing. A final inspection test report with attenuation
performance data for each fiber is attached inside the drum.
